Unshakeable Stability for Mega Projects and Data Centers.
Precision Thermal Control
Liquid Cooling (≤3°C diff) for the Quark series; ensuring absolute thermal stability under extreme industrial loads.
Turnkey Integration
The Titan series connects Solar, Grid and Diesel infrastructure into one unified microgrid.
Safety First
Ironclad protection featuring robust 3 level fire suppression and rapid deploy aerosol systems.
All in one Production
Complete manufacturing oversight from individual cell fabrication to full pack and solution integration.
Commercial & Industrial Energy Storage
High capacity robust energy storage systems built for enterprise demand.

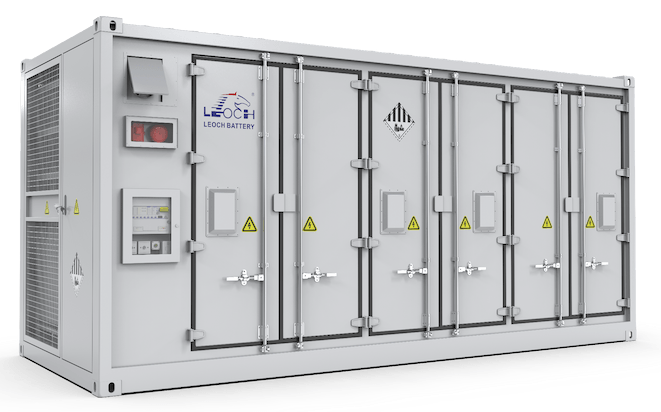

EPOCH B5015 20L
5015kWh | 1331.2V | IP55
- High Energy Efficiency, Single Cluster DC Charge/Discharge Energy Efficiency >95%
- Intelligent Liquid Cooling system
- 5 level fire protection level: Gas Detection, Aerosol Fire fighting, sprinkler fire fighting, ventilation and explosion relief system
- C3 to C5 Anti corrosion grading
- Conformance to IEC62619, IEC62477-1, IEC61000, IEC63056, IEC62933-5-2, UL1973, UL9540A, FCC, UN3480, UN3536 and EU2023/1542 Standard

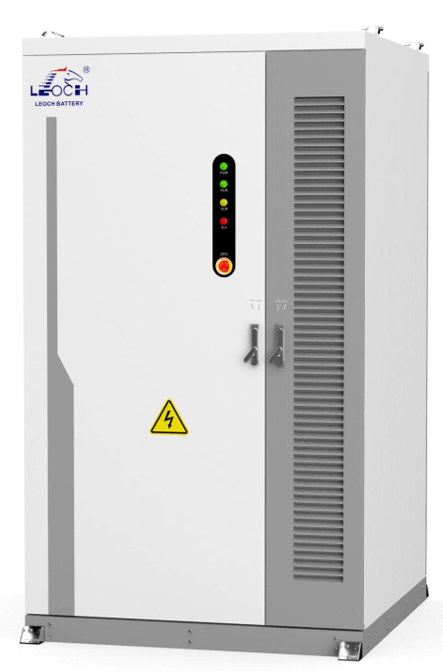

Quark DC Storage Cabinet Series
261kWH to 417kWH | HV | IP55
- Expandable to megawatt system
- Intelligent liquid cooling system
- Aerosol fire extinguishing + explosion proof pressure relief (Meet 1 hour fire resistance rating)
- Conformance to IEC61000, IEC62619, IEC62933-5-2, IEC62477, IEC60529, UL9540A, UL1973, (EU)2023 1542 and UN38.3 Standard

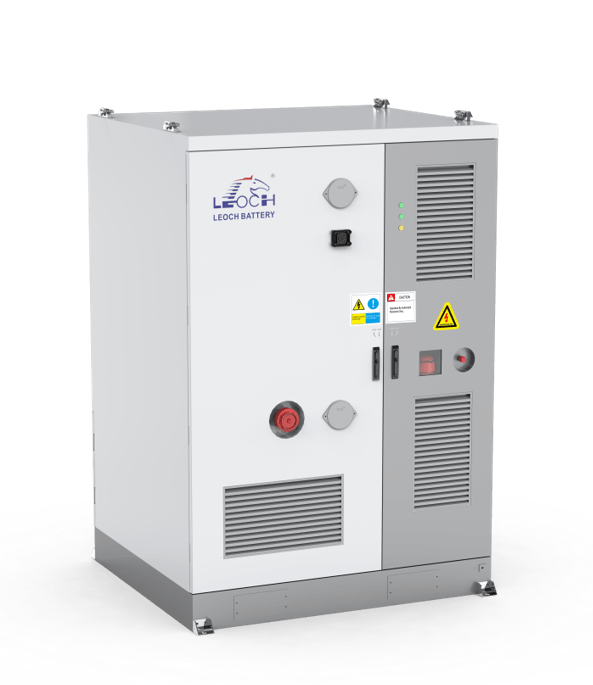

Titan Cabinet Solution Series
105kW/261kWH | HV | IP55
- All in One integrated system: DC + PCS. PV model available
- Expandable to MWh system
- 4 level of fire protection; PACK level, cabinet level aerosol fire extinguishing, water fire fighting and explosion proof pressure relief
- Battery Pack Liquid Cooling System. Air Cooling model available
- Conformance to IEC62619, IEC61000, IEC62477, IEC62109, IEC61727, IEC62116, EN50549, AS4777, G99, G100, VDE-AR-N 4105/4110/4120, Spain 217001/217002/NTS, TAIMEA & PEA, NRS097, VDE 4105 & 4110 & 4120, CEI 0-21 & 0-16 and UN38.3 Standard
Ready to Upgrade Your Projects?
Request a Project Initiation & Technical Assessment today.
Project Enquiry
